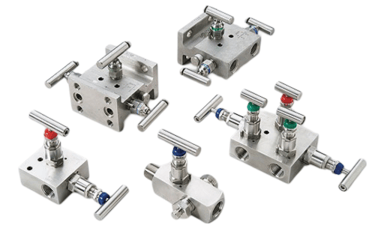

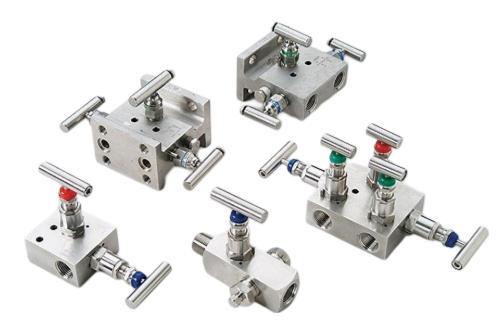

Manifold Valves

Manifold Valves

Features & Description

1) WISELOK make manifold valves are special purpose valves and are designed for static pressure, liquid level, and differential pressure applications.

2) Available in 2,3 & 5 valves configurations for use in instrument, remote mounting (pipe to flange) systems.

3) One Piece Body. Hence, potential leaks joints are few.

4) Types: Two way (For Static Level and Liquid Level applications), Three way and Five Way Manifold (For differential pressure Applications).

5) Material: Stainless Steel / Carbon Steel / Duplex Steel.

6) Pressure Rating: 6000 PSIG.

7) Gland Packing shall be PTFE and alternate Grafoil packing is provided for high temperature services with max temperature up to 520 Deg C.

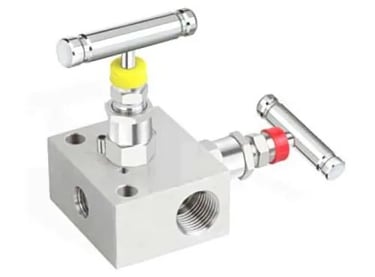

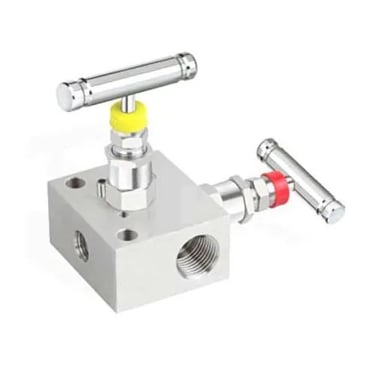

Pipe to Pipe (Flat Type)

PRODUCTS

1) 2 WAY MANIFOLD VALVES

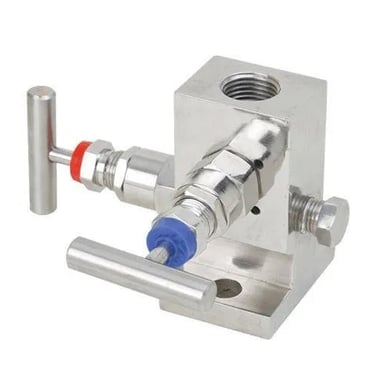

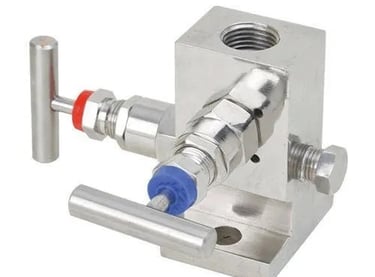

Pipe to Flange (T-Type)

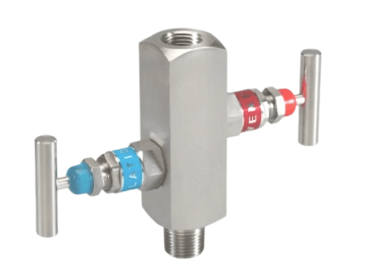

Pipe to Pipe (Block & Bleed Type)

2) 3 WAY MANIFOLD VALVES

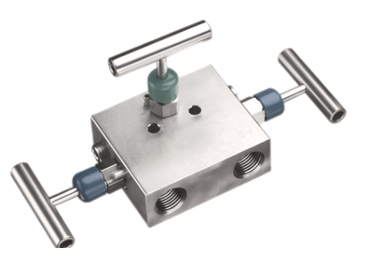

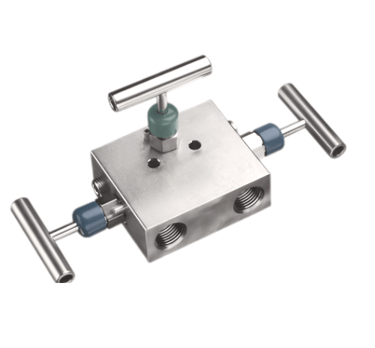

Pipe to Pipe (Flat Type)

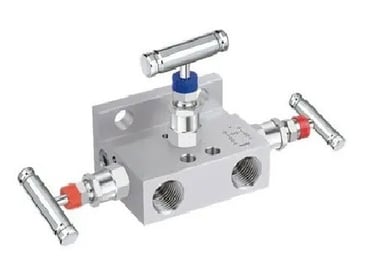

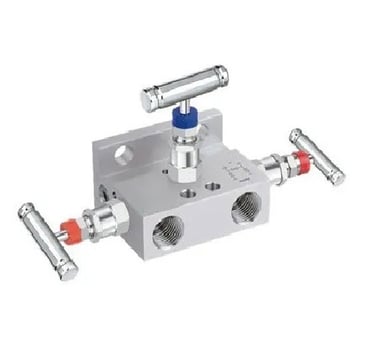

Pipe to Flange (T-Type)

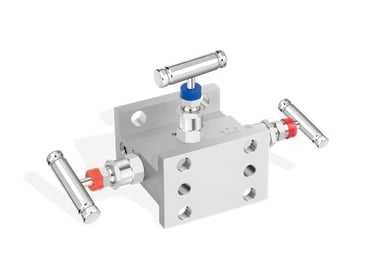

Flange to Flange (H-Type)

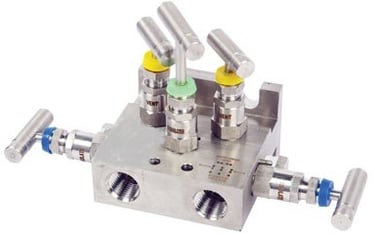

3) 5 WAY MANIFOLD VALVES

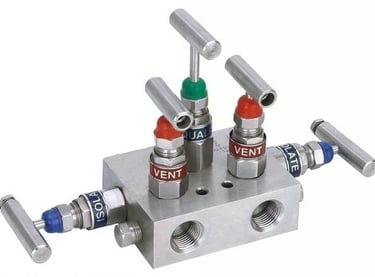

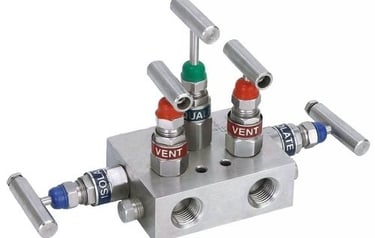

Pipe to Pipe (Flat Type)

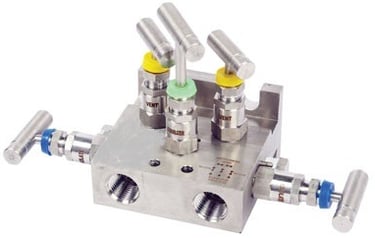

Pipe to Flange (T-Type)

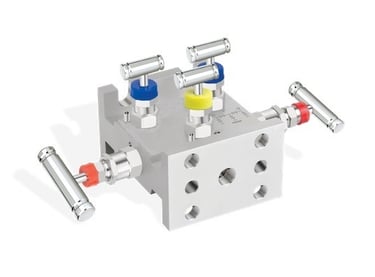

Flange to Flange (H-Type)
