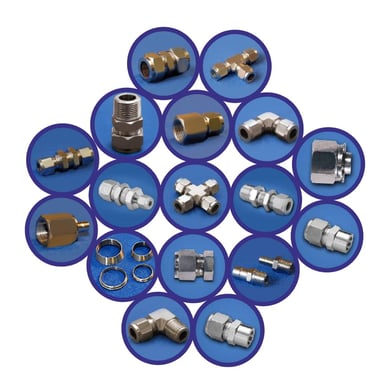

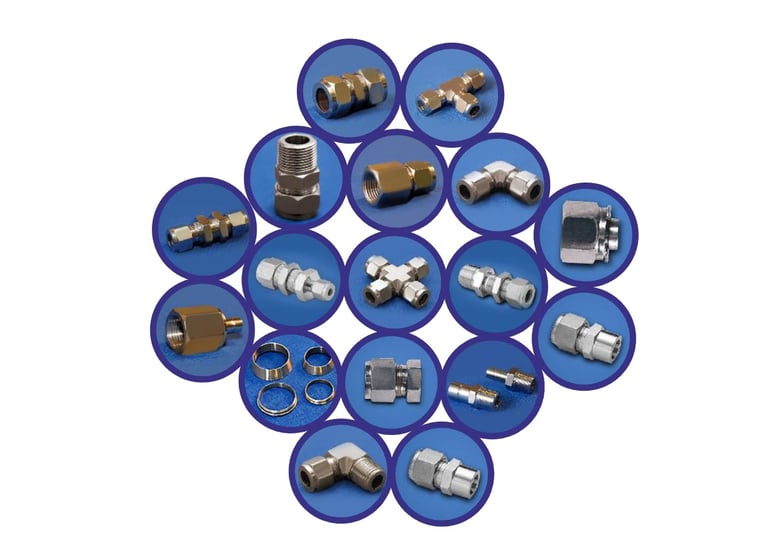

Tube Fittings

Description:

WISELOK make brand compression Tube Fittings are a 3 piece fitting of body, nut and ferrules. Ferrules swage on the outer surface of tubing assuring a leak proof joint. Only one and quarter turn are required from hand assembled joints to make safe connection.

Features:

1) Tube Fittings are available in Stainless Steel, Duplex, Monel & Brass Materials.

2) Size range from 1/16" OD to 2" OD & 3mm OD to 50mm OD

3) End connections, Male & Female NPT, BSPP, BSPT & 37° Flare.

4) Pressure Rating: 6000 PSIG

5) Fittings are designed to withstand high-pressure service and severe operation conditions.

6) They meet the severe requirements of the industry performance tests on pressure, vibration, impulse, repeated assembly.

PRODUCTS

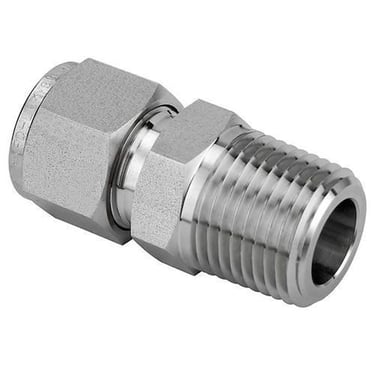

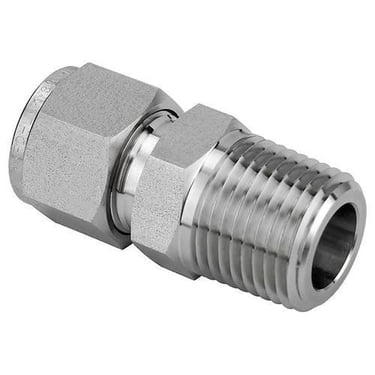

Male Connector (OD x TH)

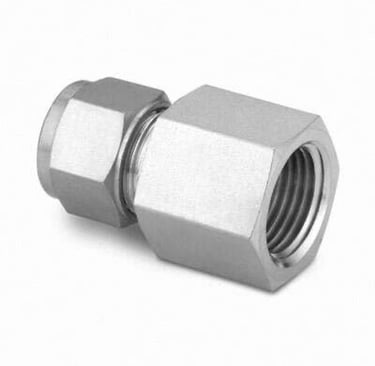

Female Connector (OD x TH)

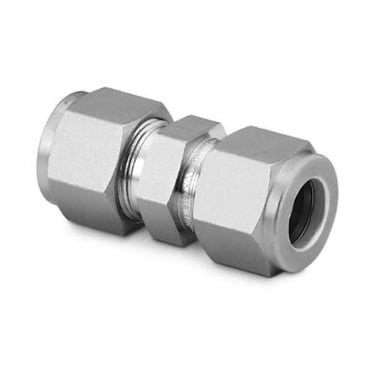

Union (OD x OD)

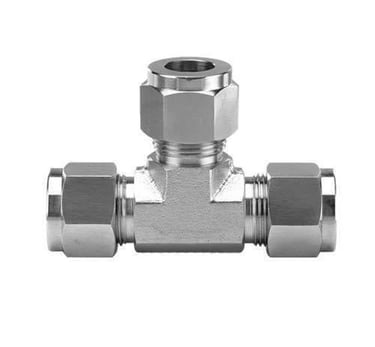

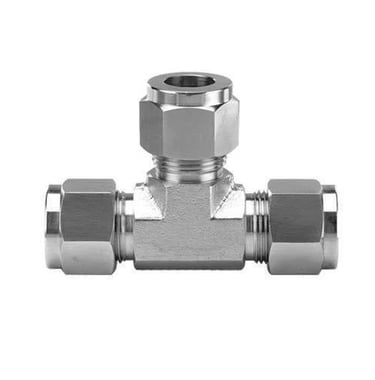

Equal Tee (OD x OD x OD)

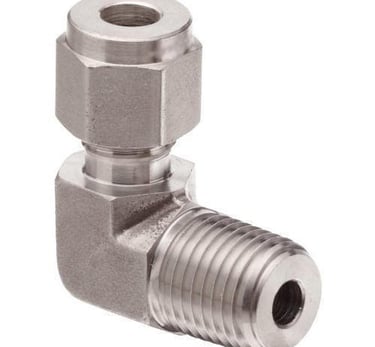

Male Elbow
(OD x TH)

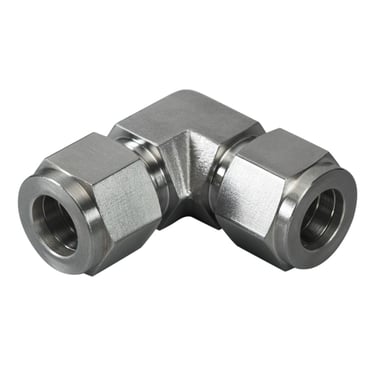

Equal Elbow (OD x OD)

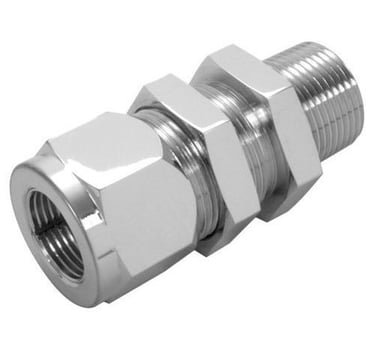

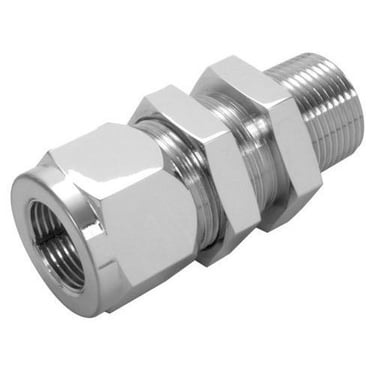

Bulkhead Male Connector (OD x TH)

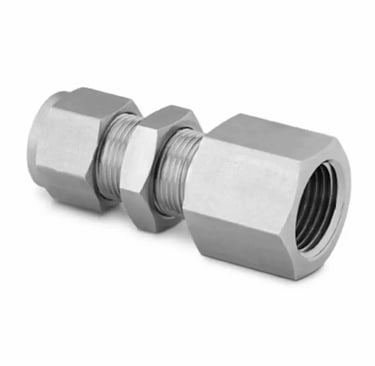

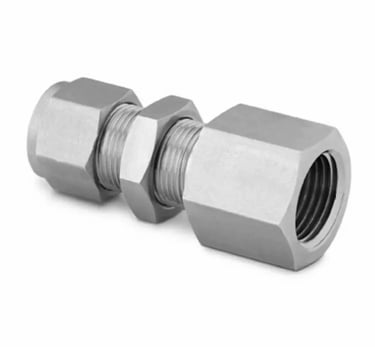

Bulkhead Female Connector (OD x TH)

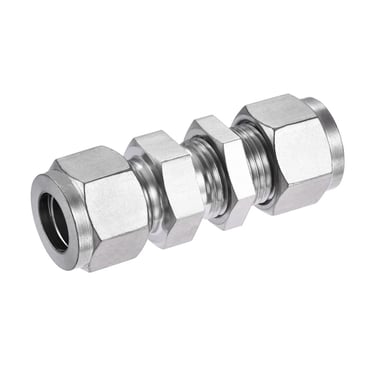

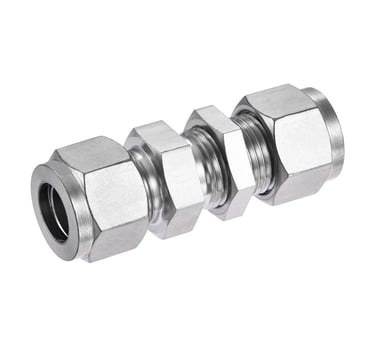

Bulkhead Union Connector (OD x OD)

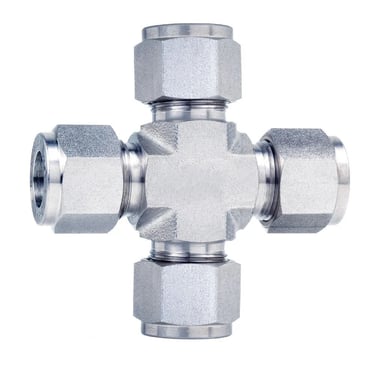

Equal Cross (OD x OD x OD)

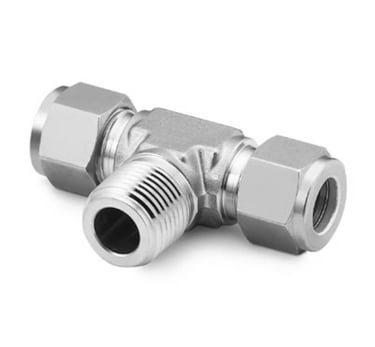

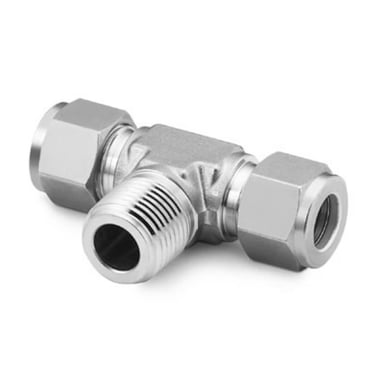

Male Branch Tee (OD x TH)

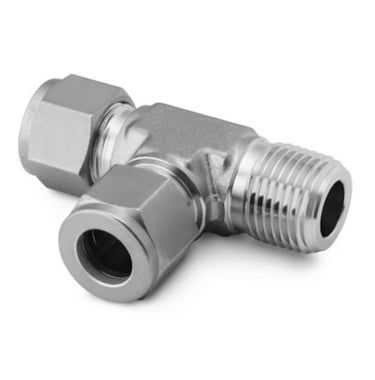

Male Run Tee (OD x TH)

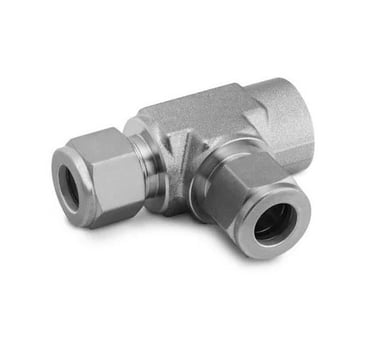

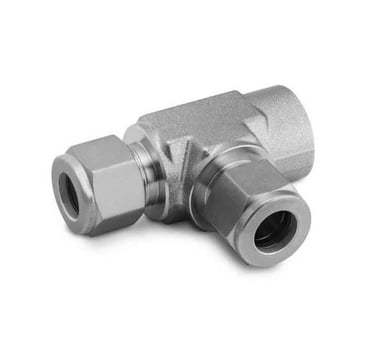

Female Run Tee (OD x TH)

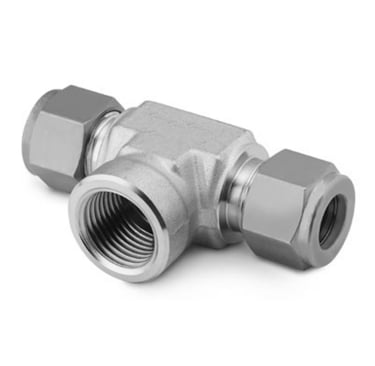

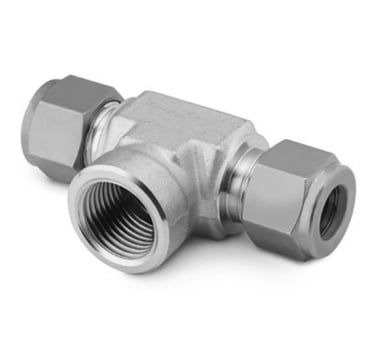

Female Branch Tee (OD x TH)

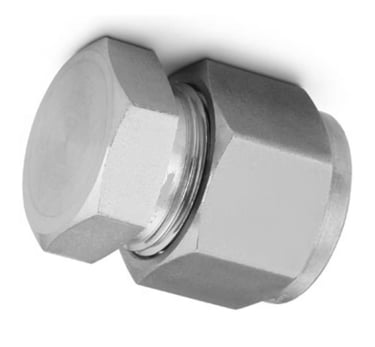

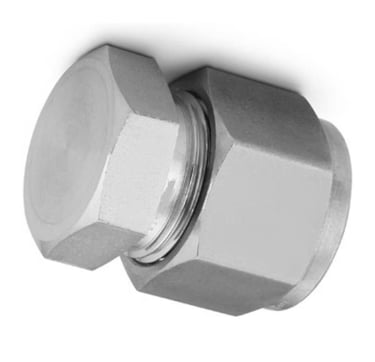

Tube End Cap

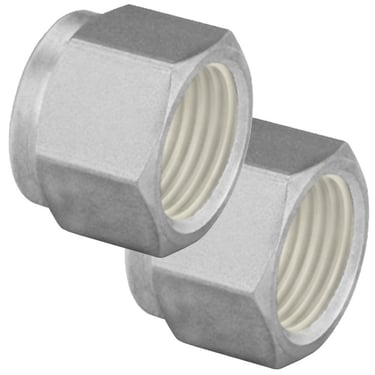

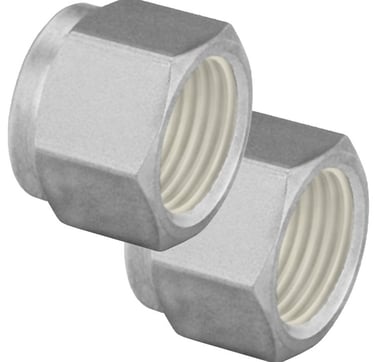

OD Nuts

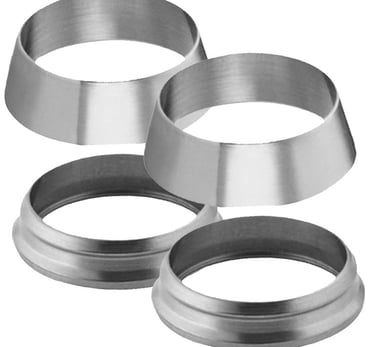

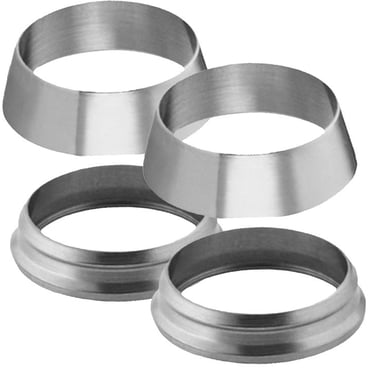

Double Ferrule

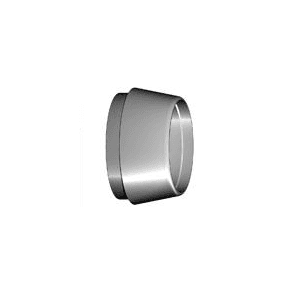

Single Ferrule

Tube Fittings (Double Ferrule / Single Ferrule)
