Features & Description

1) WISELOK make Needle Valves are designed to control flow in liquid, gases, vacuum in general and other Severe applications of high pressure and temperature.

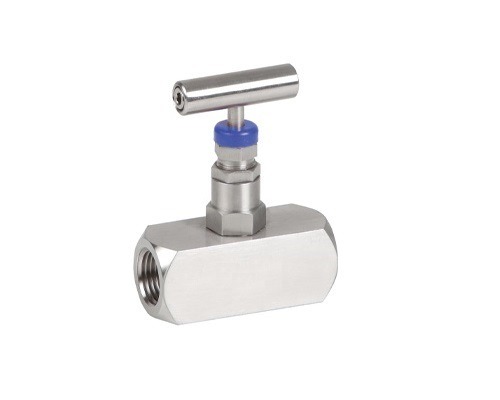

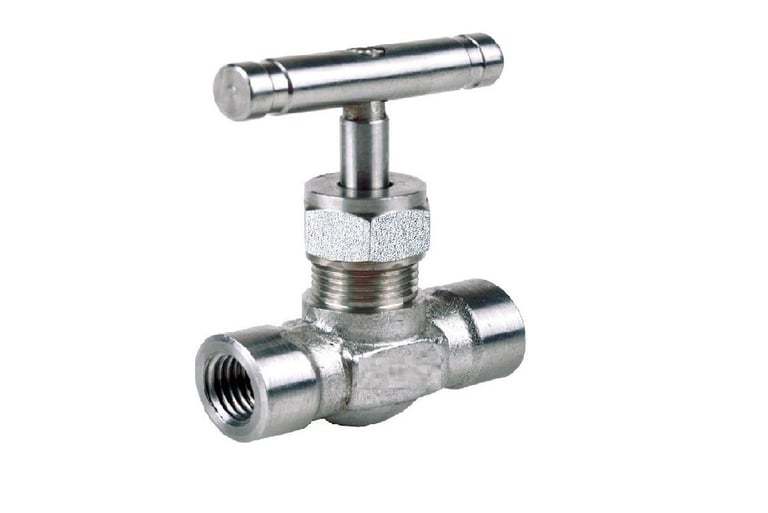

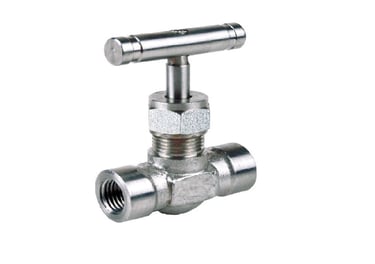

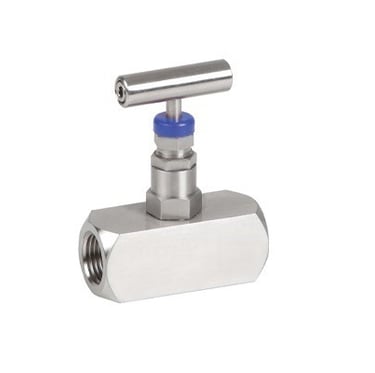

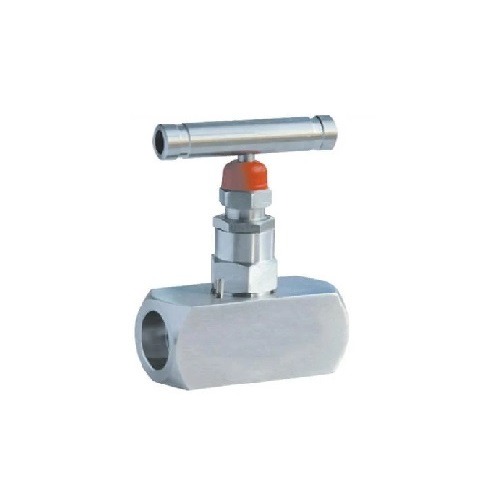

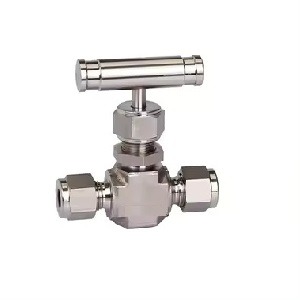

2) Available in Forged or Bar Stock Body (Straight or Angle Pattern) with Panel Mounting Nut Optional.

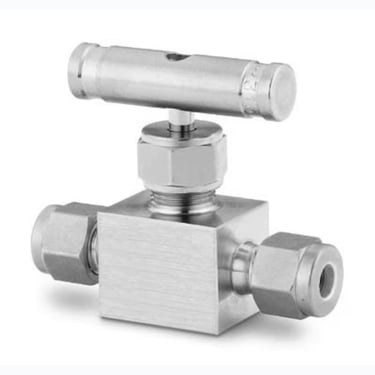

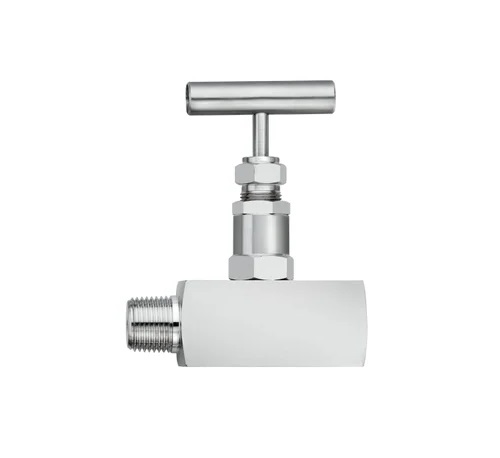

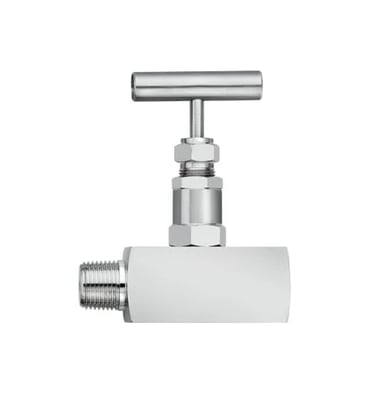

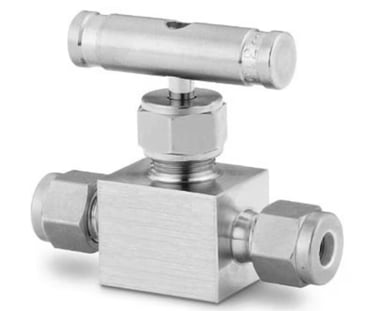

3) End Connections: Screwed to NPT, BSP, BSPT, Tube end connections, Male and Female Combination.

4) Size Range: 1/8” NB to 1” NB & 1/4” OD to 1/2” OD.

5) Material: Stainless Steel / Carbon Steel / Duplex Steel / Alloy Steel.

6) Pressure Rating: 6000 PSIG.

7) Gland Packing shall be PTFE and alternate Grafoil packing is provided for high temperature services with max temperature up to 520 Deg C.

8) Stainless Steel handle for proper actuation.

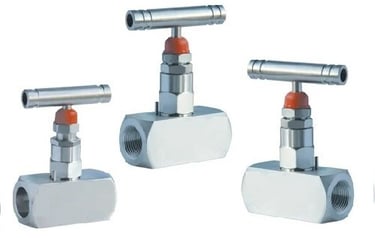

Needle Valve
